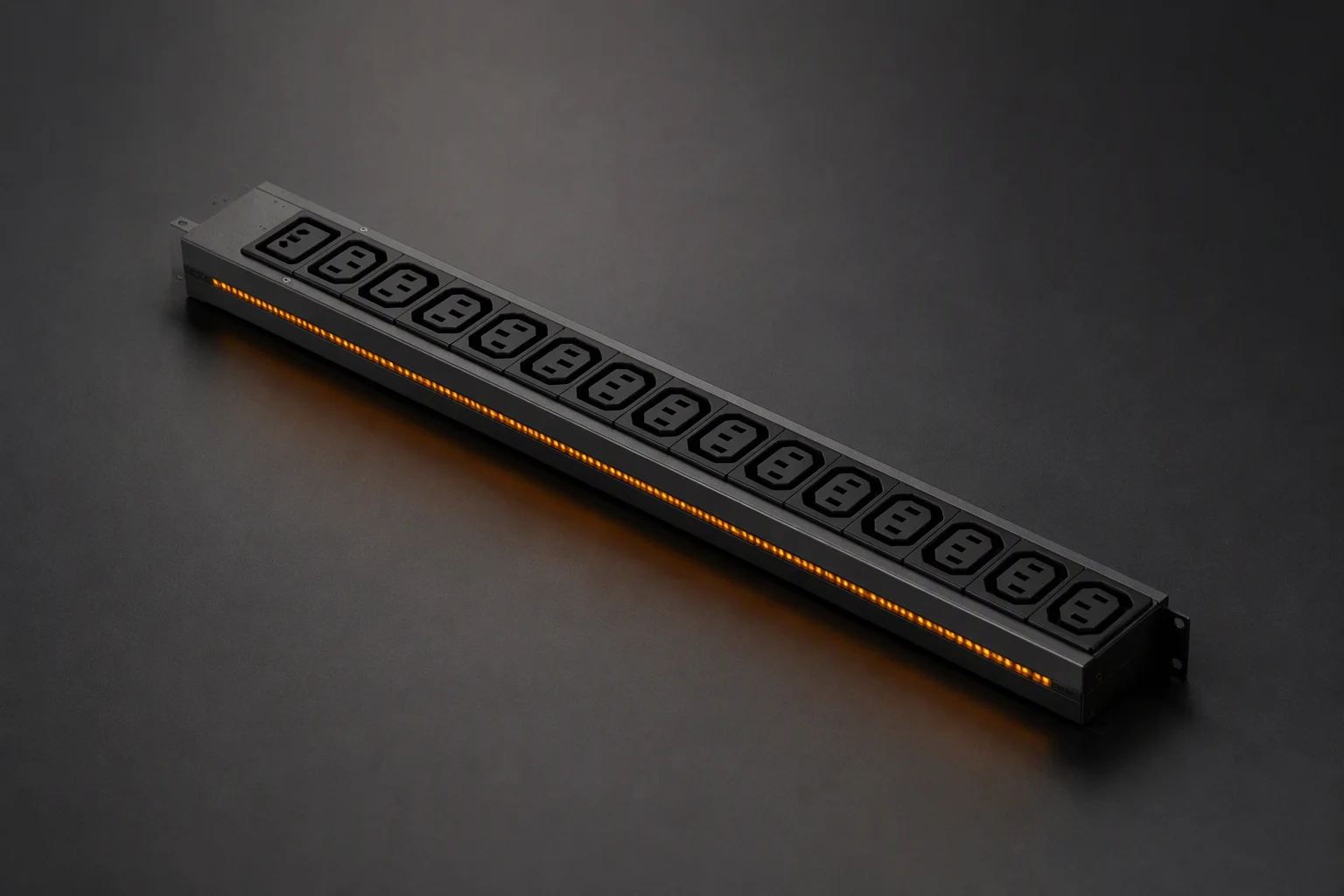

Rack PDU from a raised three-quarter angle, one raking light along the brushed steel face so the chassis depth and the outlet row read as a single continuous line, held in the right of the frame with the left side falling into unlit dark

IDCPDU · Rack power distribution

Smart rack PDU engineering

Metered, switched and per-outlet monitored rack PDUs, built to the current and outlet count of one feed. Metering holds ±1% on current, voltage and power.

Request a quote Open the specification

Metering accuracy: ±1%
Energy grade: 1 grade
Energy scale: 0.1 kWh
Current range: 10A to 32A
Reporting: SNMP / Modbus

Metering specification

What the meter reads, and how precisely

Readings come from the metering platform, not from a nameplate figure. Every reporting line carries its own current transformer and its own meter circuit.

Accuracy class ±1% + 1 digit · energy grade 1 · scale 0.1 kWh

Current: ±1% + 1 digit, 0.1A
Voltage: ±1% + 1 digit, 1V
Active power: ±1%
Energy, total: 1 grade, 0.1 kWh
Meter input window: 90V to 350V
Operating voltage: 110V to 250V AC
Input current: 10A to 32A
Output current: 10A to 16A
Frequency: 50Hz to 60Hz
Temperature input: -30°C to 100°C, 1°C
Humidity input: 1% to 99%
Wide-input build: 180 to 265V, surge protected

Reporting line

One circuit, one measurement

A reporting line is the smallest block the meter resolves: one feed, one group, or one outlet. The resolution you pick decides which scale the readings carry.

Scales in use: 0.1A current · 1V voltage · 0.1 kWh energy

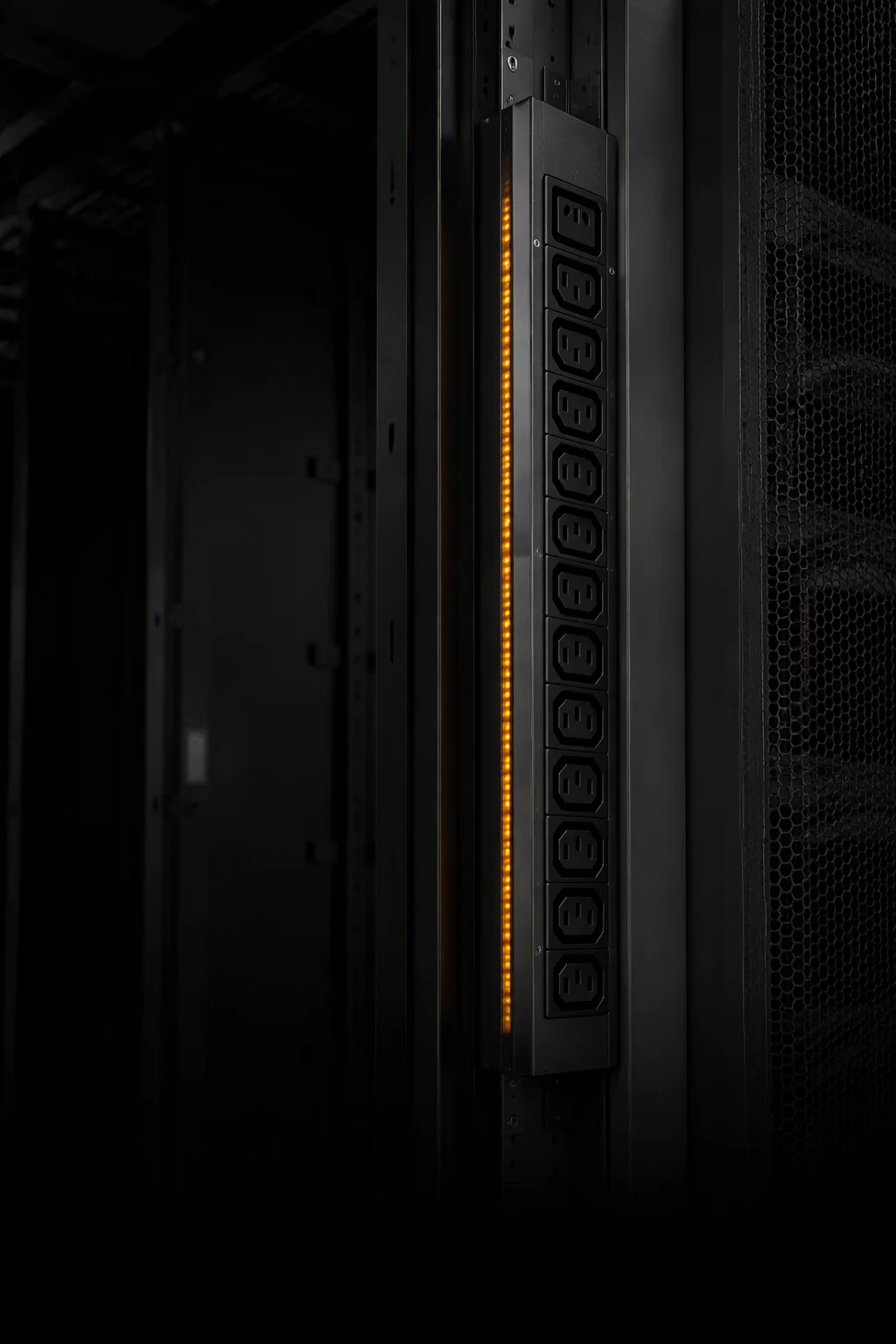

Installed rack PDU seen from a low three-quarter angle inside a dark equipment aisle, rack rails and a receding row of closed cabinets falling out of focus behind it, subject held in the right of the frame

Measurement chain

From the socket to the reporting line

Each outlet sits behind its own current transformer. The meter circuit reads that transformer, the OLED shows the result at the unit, and the network port republishes it.

Per outlet: current transformer
Meter circuit: ±1%, grade 1 energy
Local display: OLED, 6 readouts
Uplink: 10/100M Ethernet, RS485

Readout register

Six figures the platform publishes

The same numbers appear on the OLED, in the web server and in the SNMP or Modbus register map. One value, three places to read it.

Accuracy, current±1%Voltage and active power carry the same class.

Energy grade1 gradeBilling-class total energy, scale 0.1 kWh.

Current scale0.1AResolution on every reporting line.

Event records20,000Held in the unit, with an RTC that keeps time through a power loss.

Ambient input-30°CTemperature sensing from -30°C to 100°C at 1°C resolution.

Reply window12 hoursWorking-day reply to a configured enquiry.

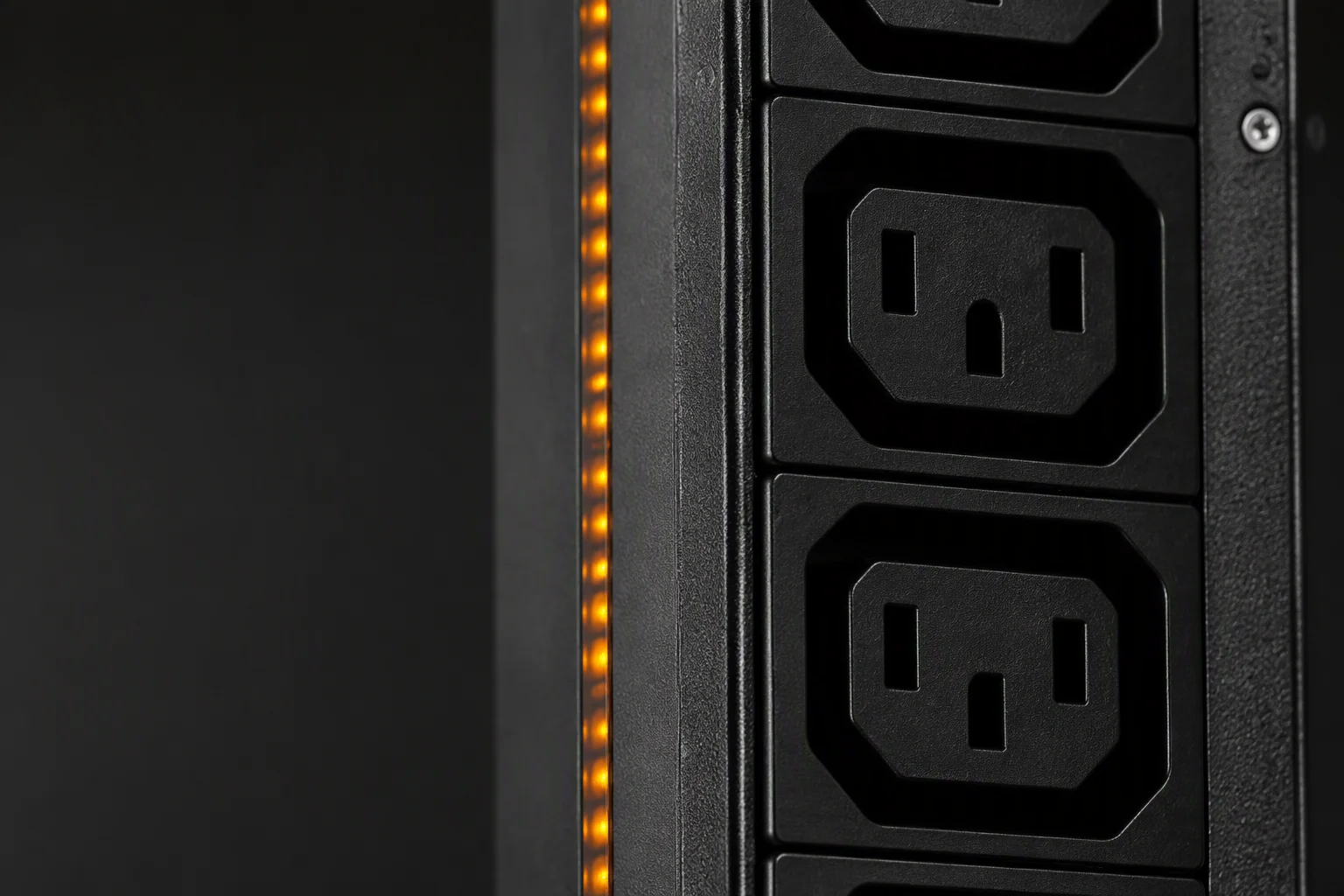

Macro view of the connector field on a rack PDU: IEC outlet bodies in a repeating rank with one cable seated and the metal work visible between them, held in the right of the frame

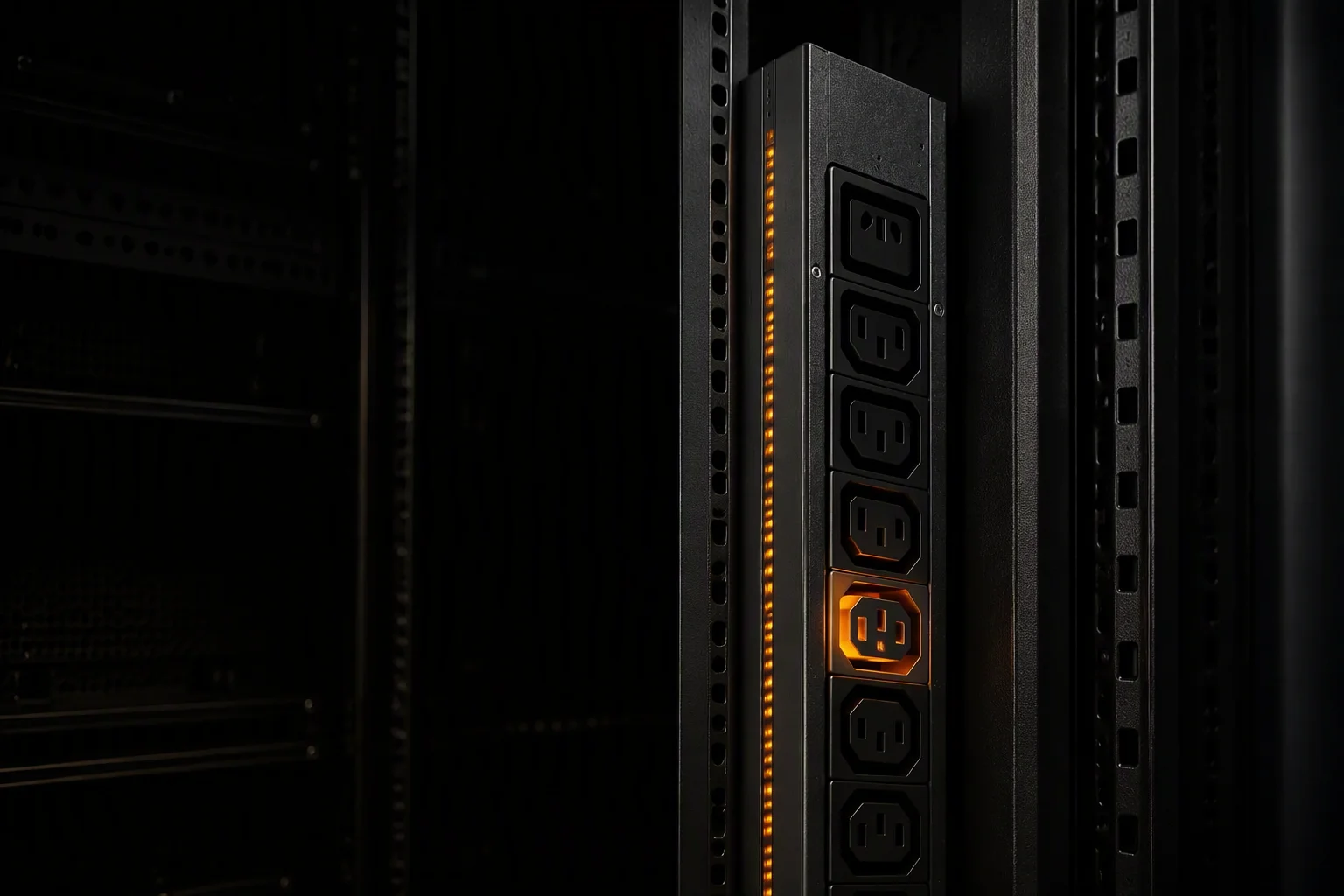

Switching and network

Switch one outlet, or a whole group

Relays sit per outlet or per group, so a reboot can be scoped to a single device. The same firmware answers SNMP and Modbus, serves its own web page and sends SMTP alerts when a threshold trips.

Network: 10/100M Ethernet ×1
Serial: RS485 ×1
Protocols: SNMP, Modbus
Alarms: SMTP, threshold based

Order route

From enquiry to a tested unit

Six stages, each with a document set behind it. Nothing is built until the electrical data on the drawing matches the feed you are installing into.

Enquiry and feed review

You send the four lines: outlet combination, current per feed, metering depth and whether remote switching is needed. We check them against the inlet, the breaker and the enclosure size.

Customer: four lines of electrical data

Configuration and drawing

The outlet set is fixed and an outline drawing follows, drawn per unit and per mounting orientation. The drawing carries current, frequency and protection ratings.

Customer: confirm the drawing revision

Enclosure and busbar

Cold-rolled steel is cut and formed for the chassis, then the copper busbar and the breaker bank are mounted. Conductors run to finalise at VDE 2.5mm² or 6mm².

Customer: mounting orientation and cable entry

Assembly and wiring

Outlets are wired into the busbar and identified against the drawing. Metering transformers are seated on the lines that need reporting.

Customer: label and numbering format

100% electrical testing

Every unit is powered before it is packed: continuity, polarity, insulation and function. Metering is compared against a reference, and the reading is recorded per line.

Customer: test record per line

Packing and documents

The unit is packed with the outlet row protected and the documents set inside. The specification sheet travels per line, with certificate titles and holder named.

Customer: per-line specification sheet

Certificates and conformity

Certificates, by title and holder

Certificates are held by the legal entity, Ningbo DCDU Power Distribution Equipment Co., Ltd. The UL evidence is a component certificate, so the wording here is UL Recognized Component, certified to UL 62368-1.

Holder: Ningbo DCDU
Management systems: ISO 9001, ISO 14001, ISO 45001
Product conformity: CE, RoHS, UL 62368-1
Recycled content: >95%, declared by the holder

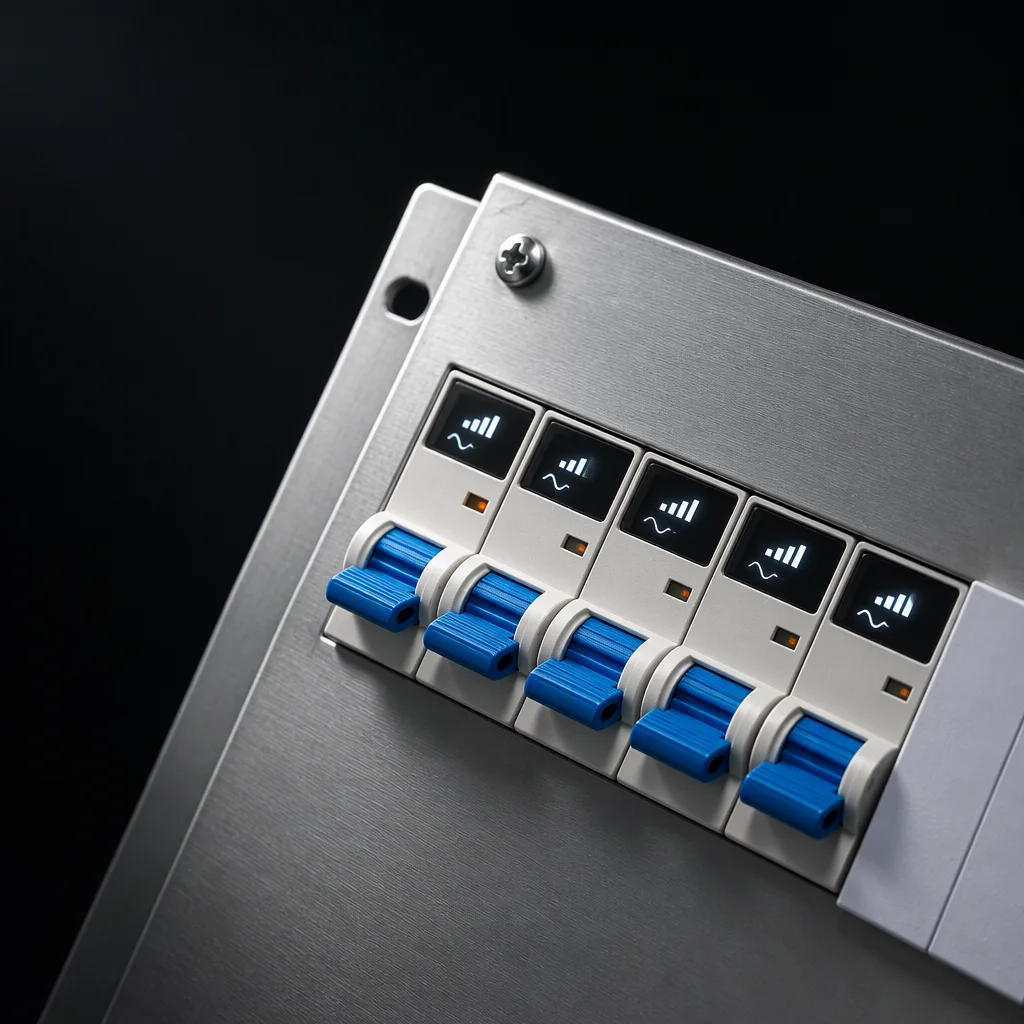

Macro view of the readout panel on a rack PDU, a small OLED glowing with abstract white metering glyphs and no legible words, held in the right of the frame

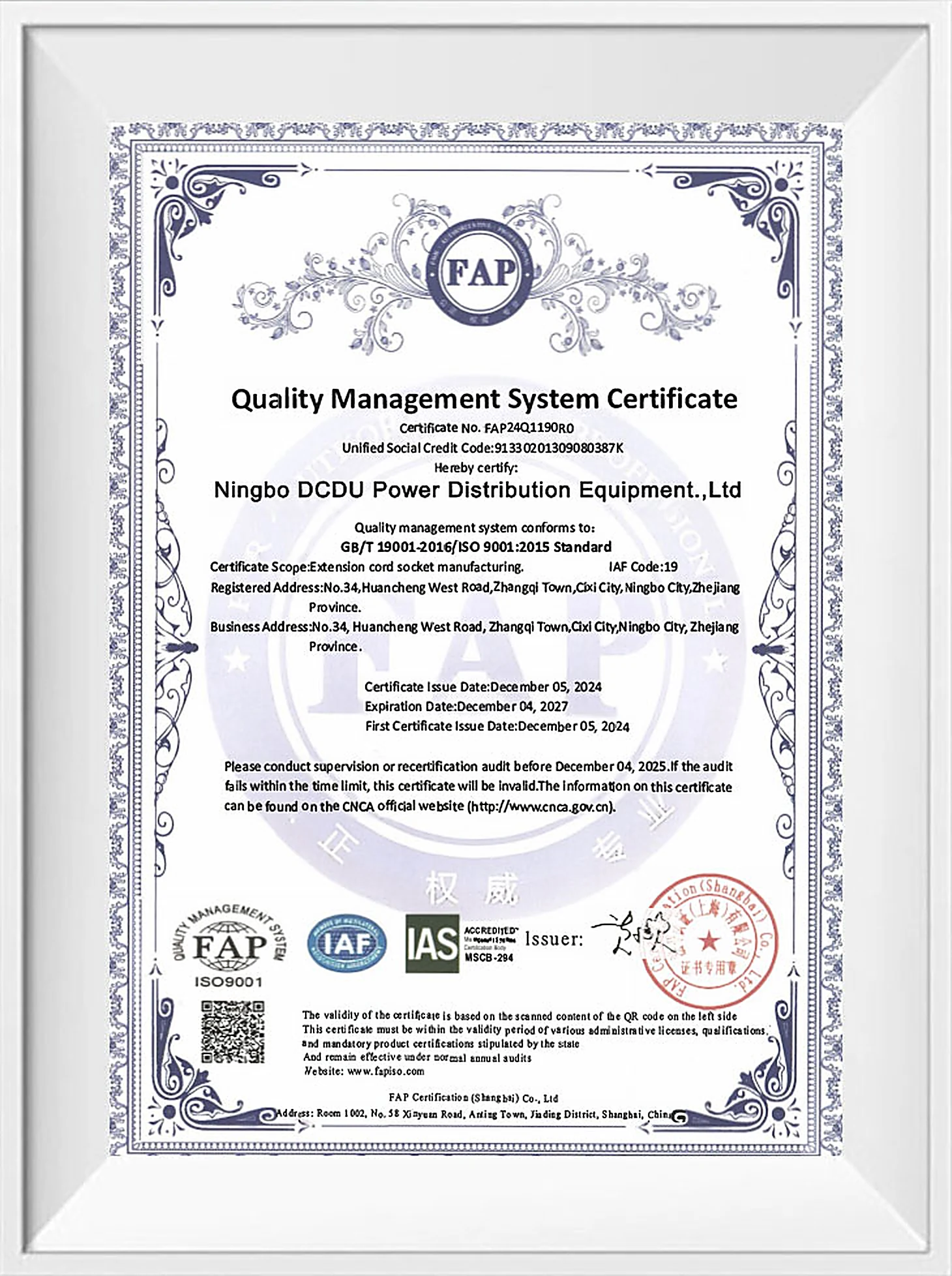

ISO 9001 quality management certificate scan naming Ningbo DCDU Power Distribution Equipment Co., Ltd. as holder

ISO 9001Quality management · holder: Ningbo DCDU

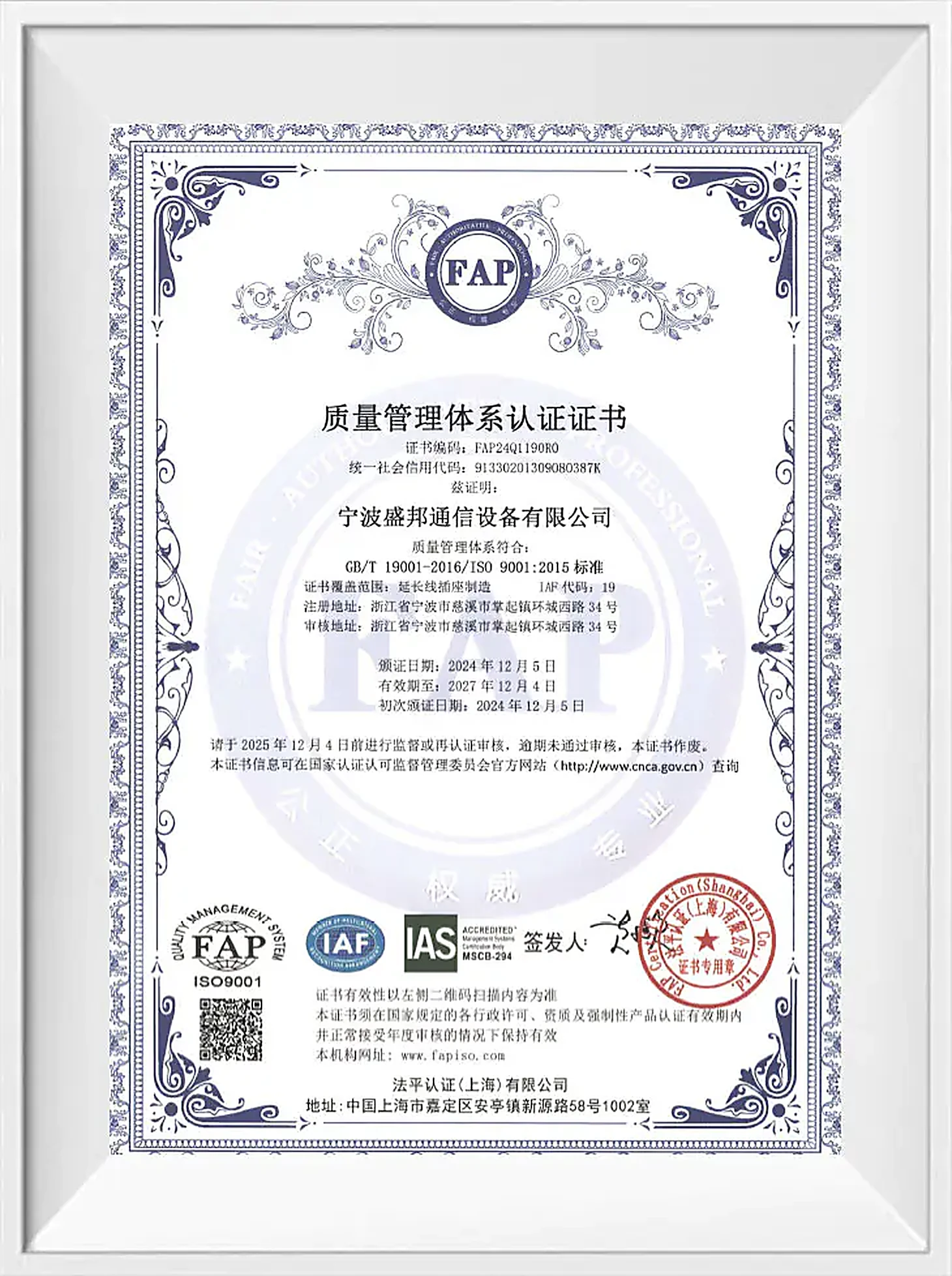

ISO 9001 quality management certificate scan, original issue, naming Ningbo DCDU Power Distribution Equipment Co., Ltd.

ISO 9001Quality management · original issue

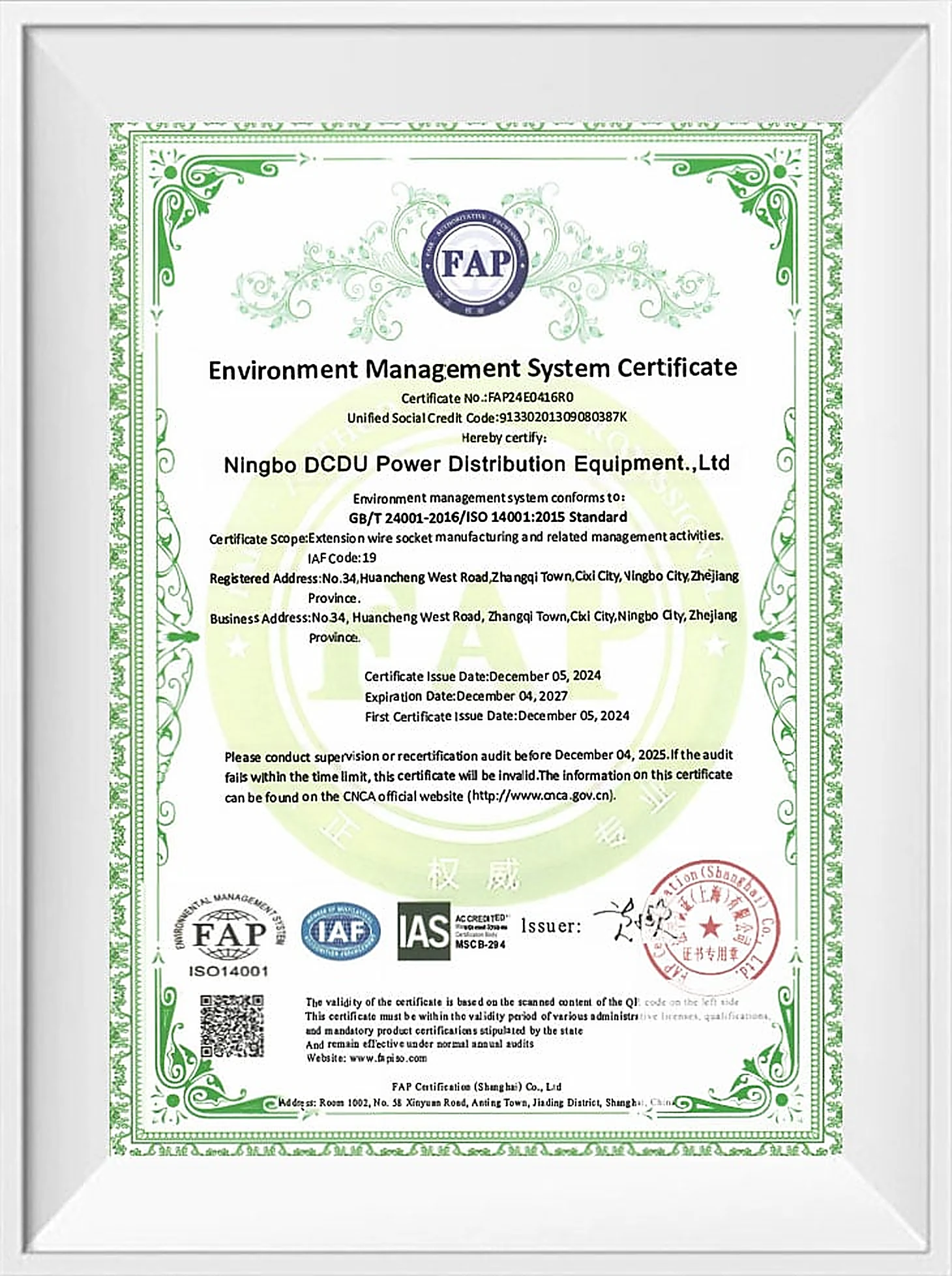

ISO 14001 environmental management certificate scan naming Ningbo DCDU Power Distribution Equipment Co., Ltd. as holder

ISO 14001Environmental management · holder: Ningbo DCDU

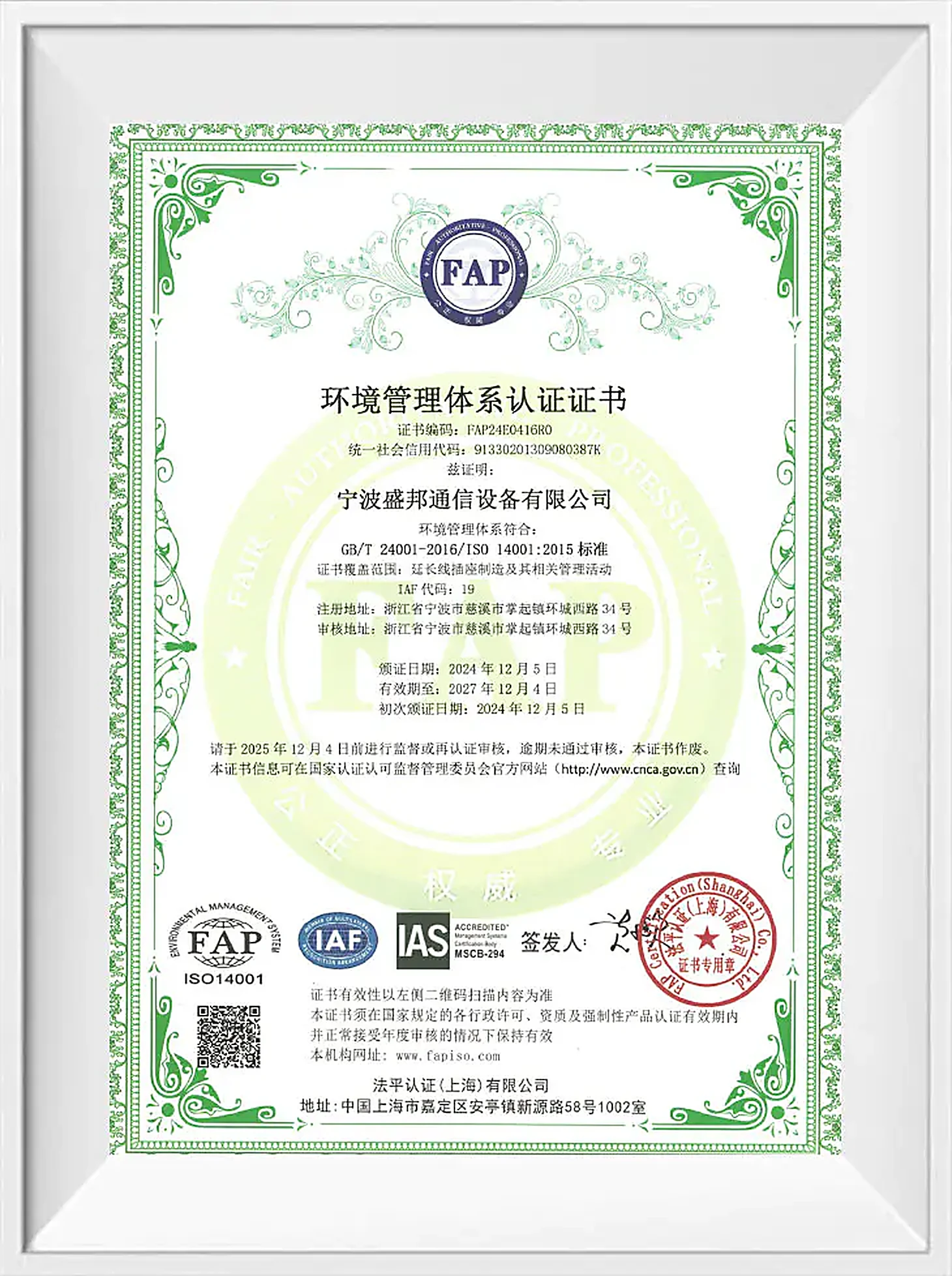

ISO 14001 environmental management certificate scan, original issue, naming Ningbo DCDU Power Distribution Equipment Co., Ltd.

ISO 14001Environmental management · original issue

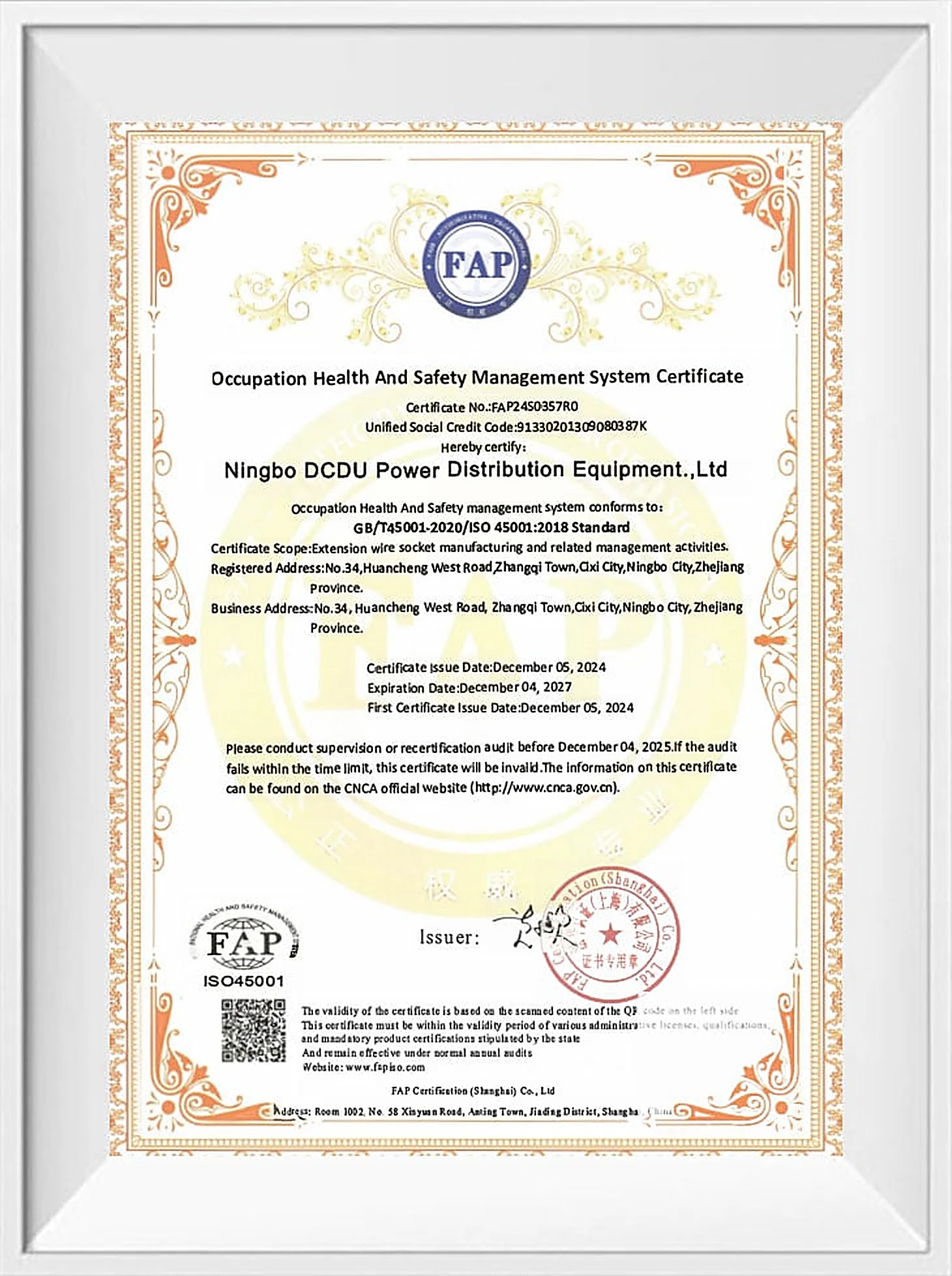

ISO 45001 occupational health and safety certificate scan naming Ningbo DCDU Power Distribution Equipment Co., Ltd. as holder

ISO 45001Health and safety · holder: Ningbo DCDU

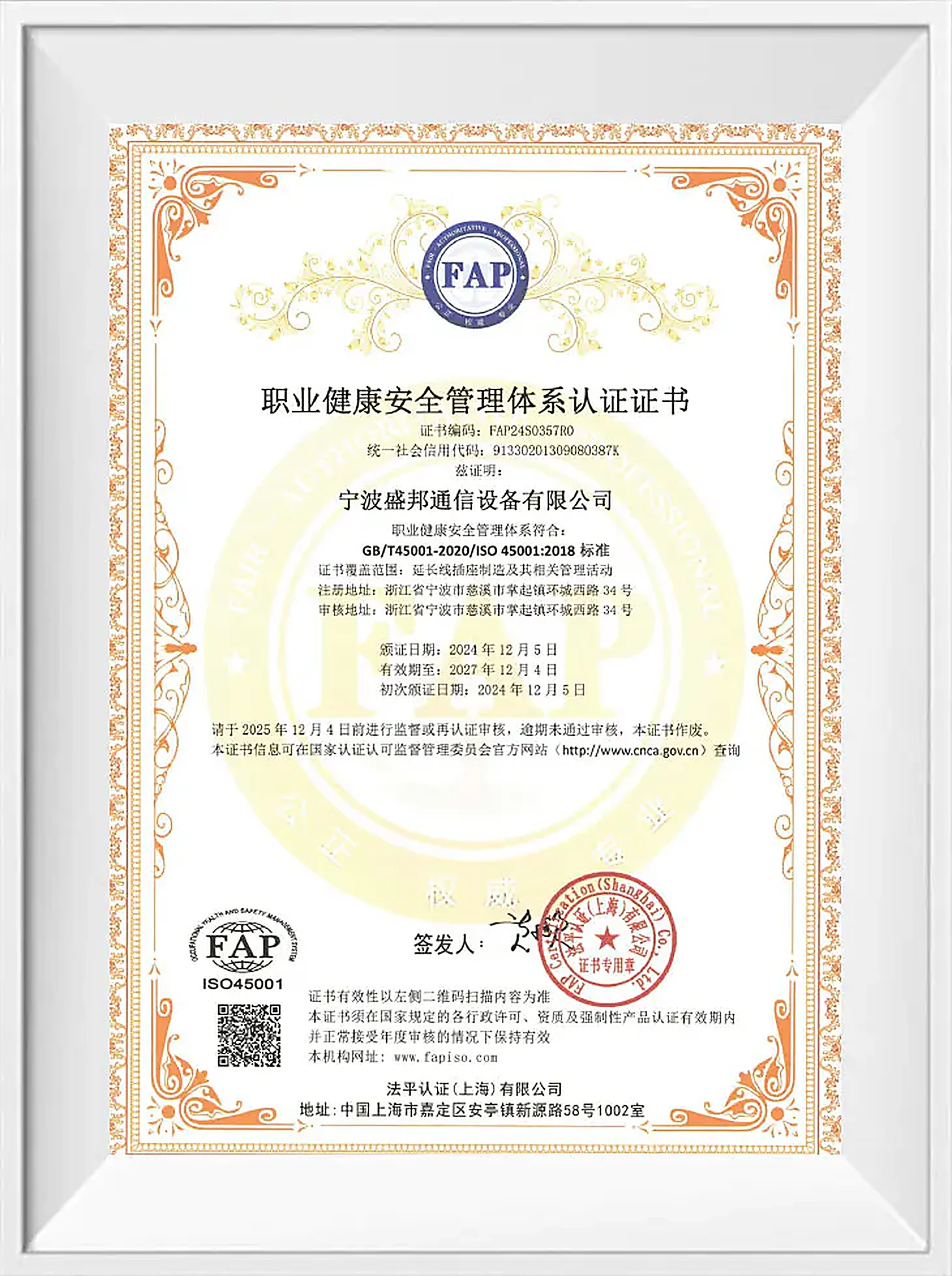

ISO 45001 occupational health and safety certificate scan, original issue, naming Ningbo DCDU Power Distribution Equipment Co., Ltd.

ISO 45001Health and safety · original issue

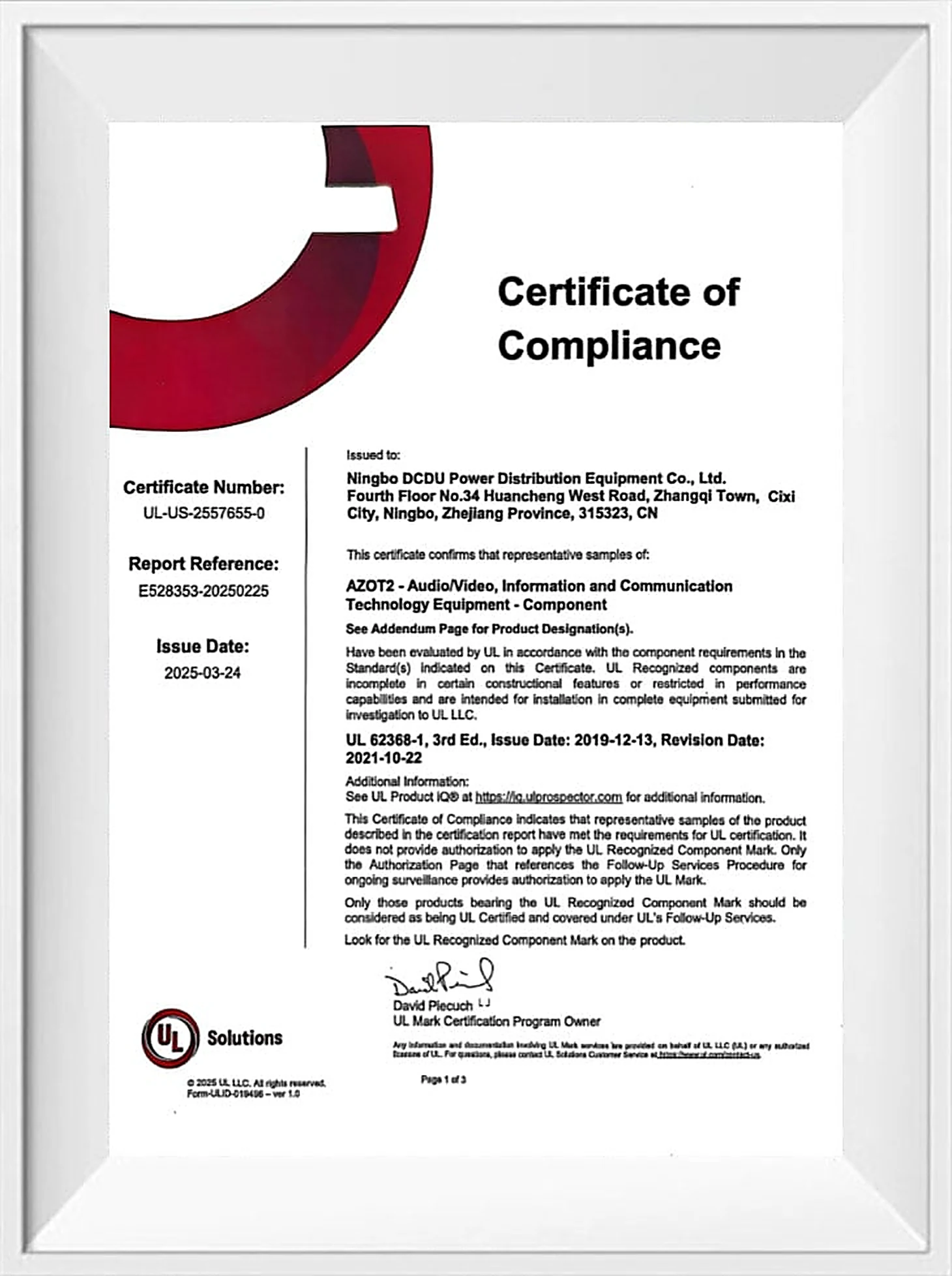

UL component certificate scan for audio, video and information technology equipment, certified to UL 62368-1, held by Ningbo DCDU Power Distribution Equipment Co., Ltd.

UL 62368-1Component certificate · holder: Ningbo DCDU

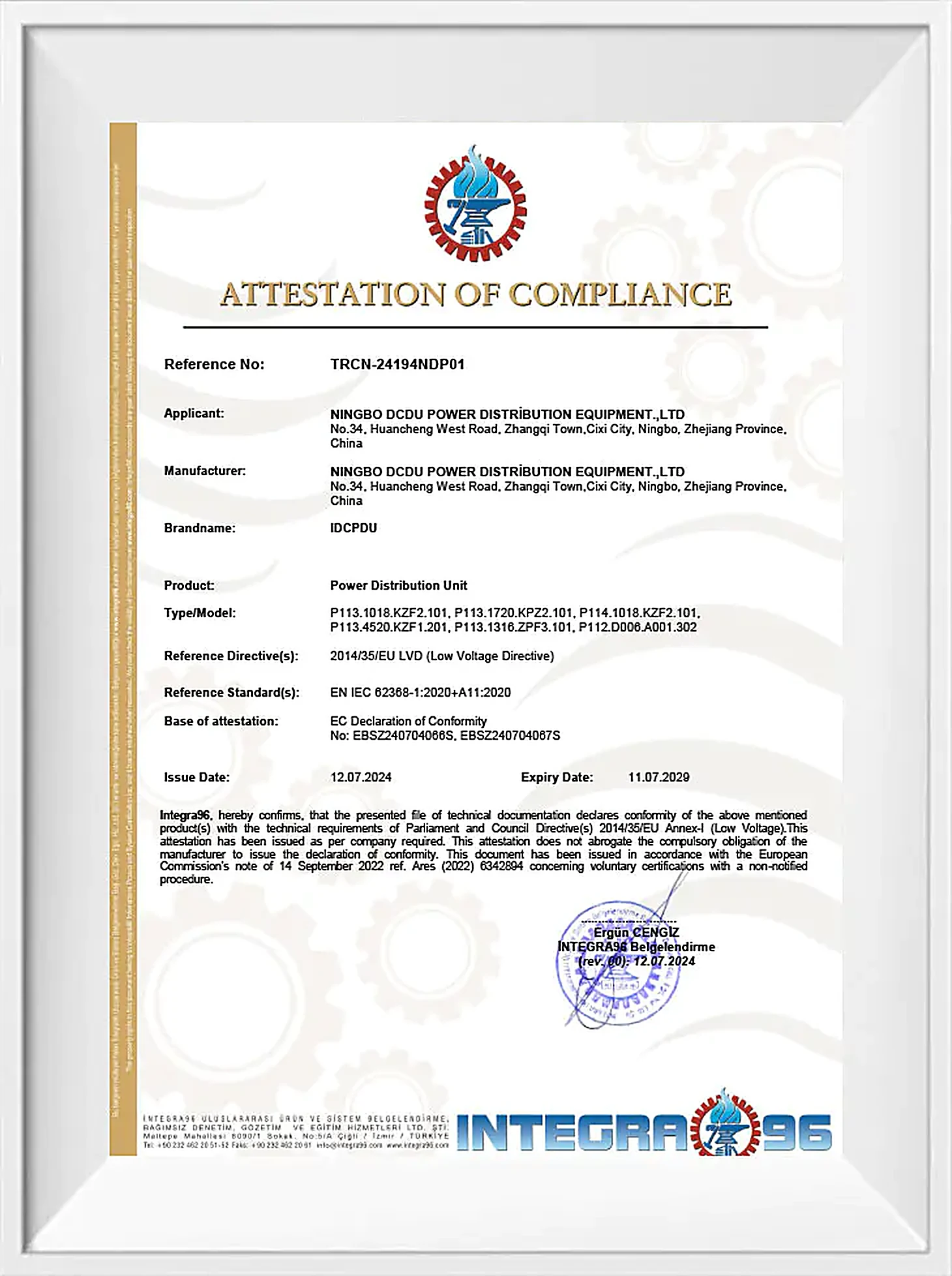

CE low voltage directive certificate scan issued to Ningbo DCDU Power Distribution Equipment Co., Ltd.

CE, LVDLow voltage directive · holder: Ningbo DCDU

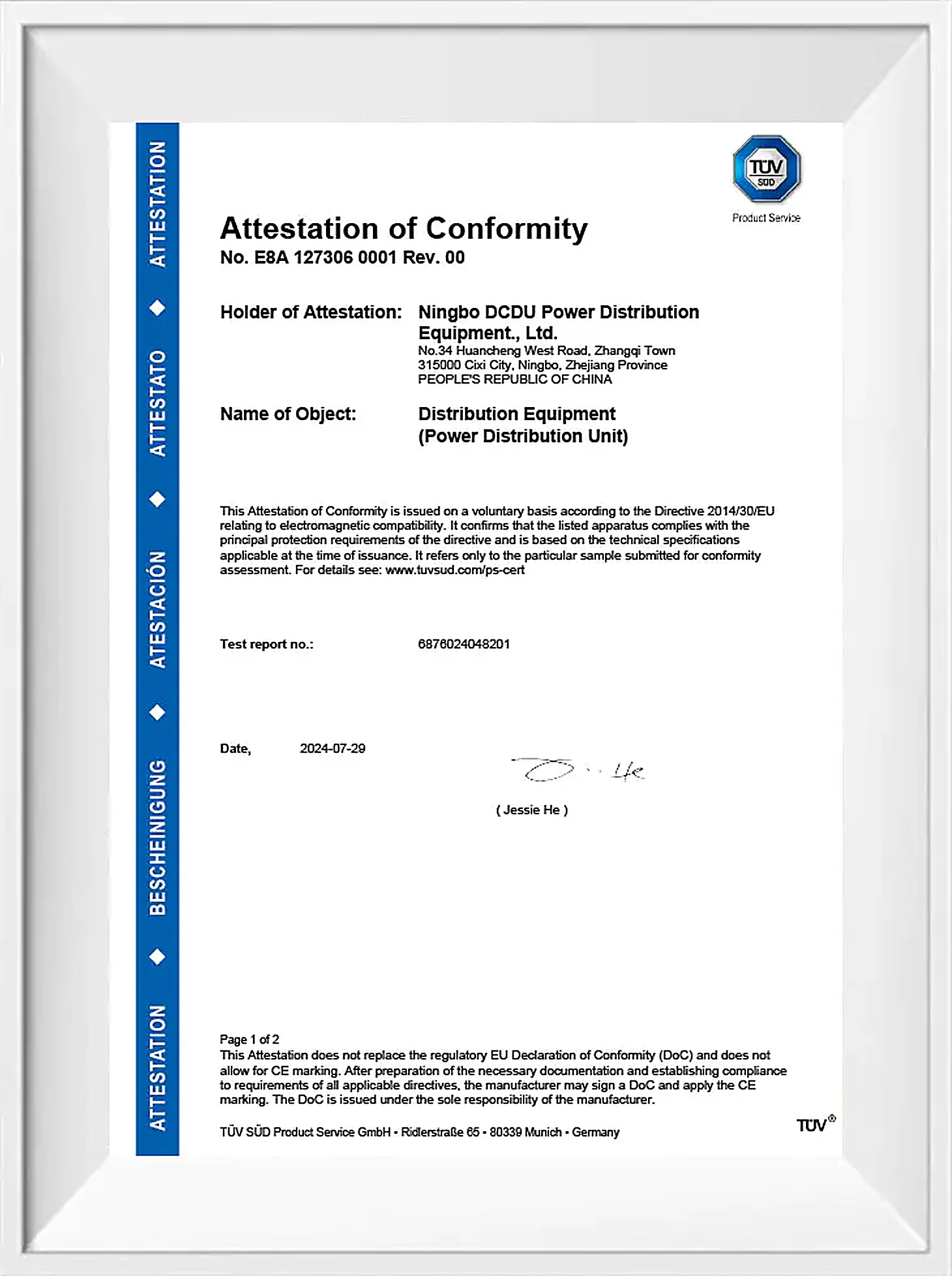

CE electromagnetic compatibility certificate scan issued through TUV to Ningbo DCDU Power Distribution Equipment Co., Ltd.

CE, EMCElectromagnetic compatibility · TUV

CE certificate scan issued to Ningbo DCDU Power Distribution Equipment Co., Ltd.

CEConformity · holder: Ningbo DCDU

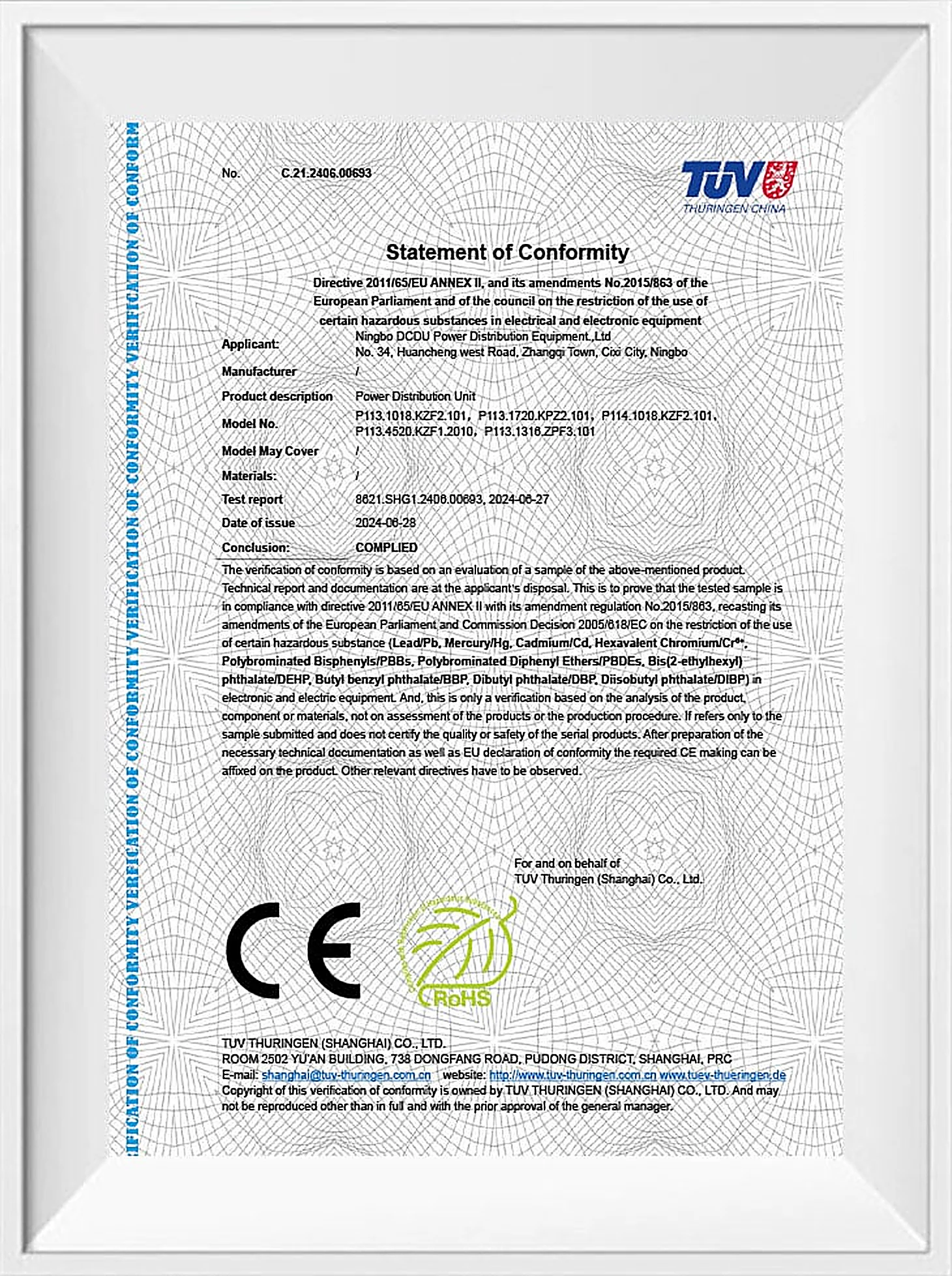

RoHS certificate scan issued through TUV to Ningbo DCDU Power Distribution Equipment Co., Ltd.

RoHSRestricted substances · TUV

CCC certificate scan issued to Ningbo DCDU Power Distribution Equipment Co., Ltd.

CCCProduct conformity · holder: Ningbo DCDU

Certificate numbers are not published on this page. Titles, standards and the holding entity are available on request.

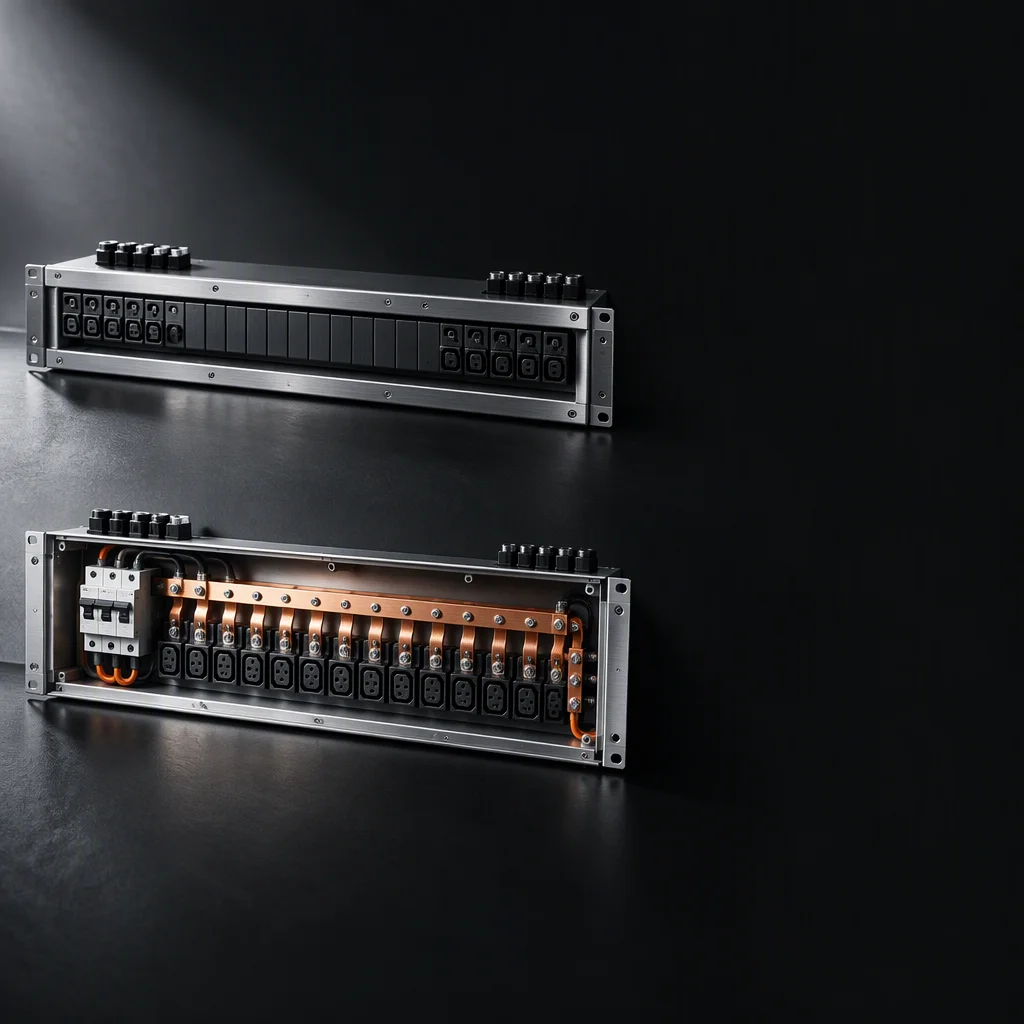

Opened rack PDU photographed straight down: the copper busbar run, the breaker bank and the conductor terminations lit to show the workmanship, held in the left of the frame

Where the units go

Six places a rack PDU earns its cost

The metering depth changes with the room. A colocation circuit is billed per tenant, a test rack is switched per rig, and an edge cabinet is watched for ambient temperature.

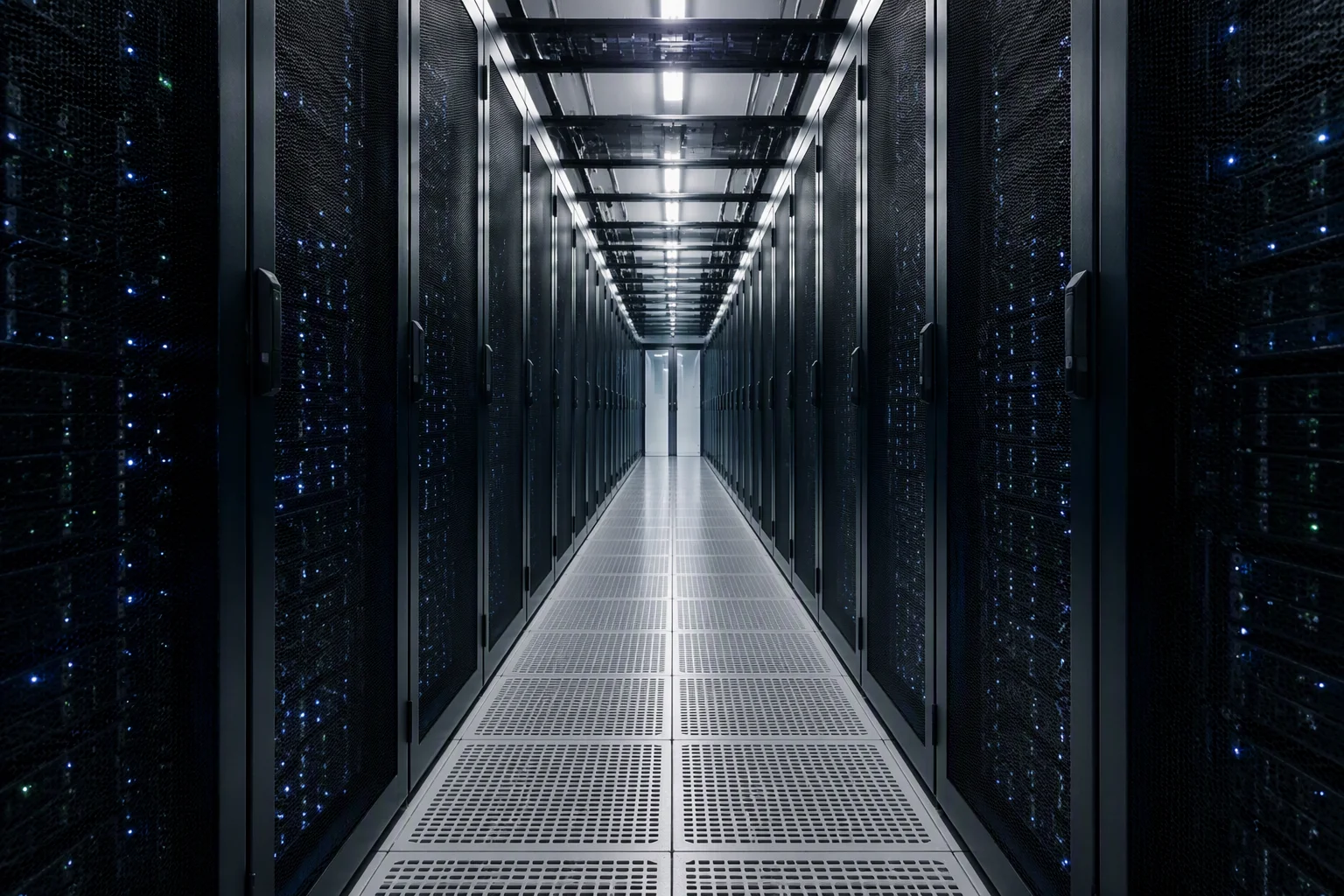

Data hall: row-level metering, feeds to 32A
Server room: 10A to 16A outlet feeds
Colocation: billing-grade energy per circuit
Laboratory: per-outlet switching for test rigs

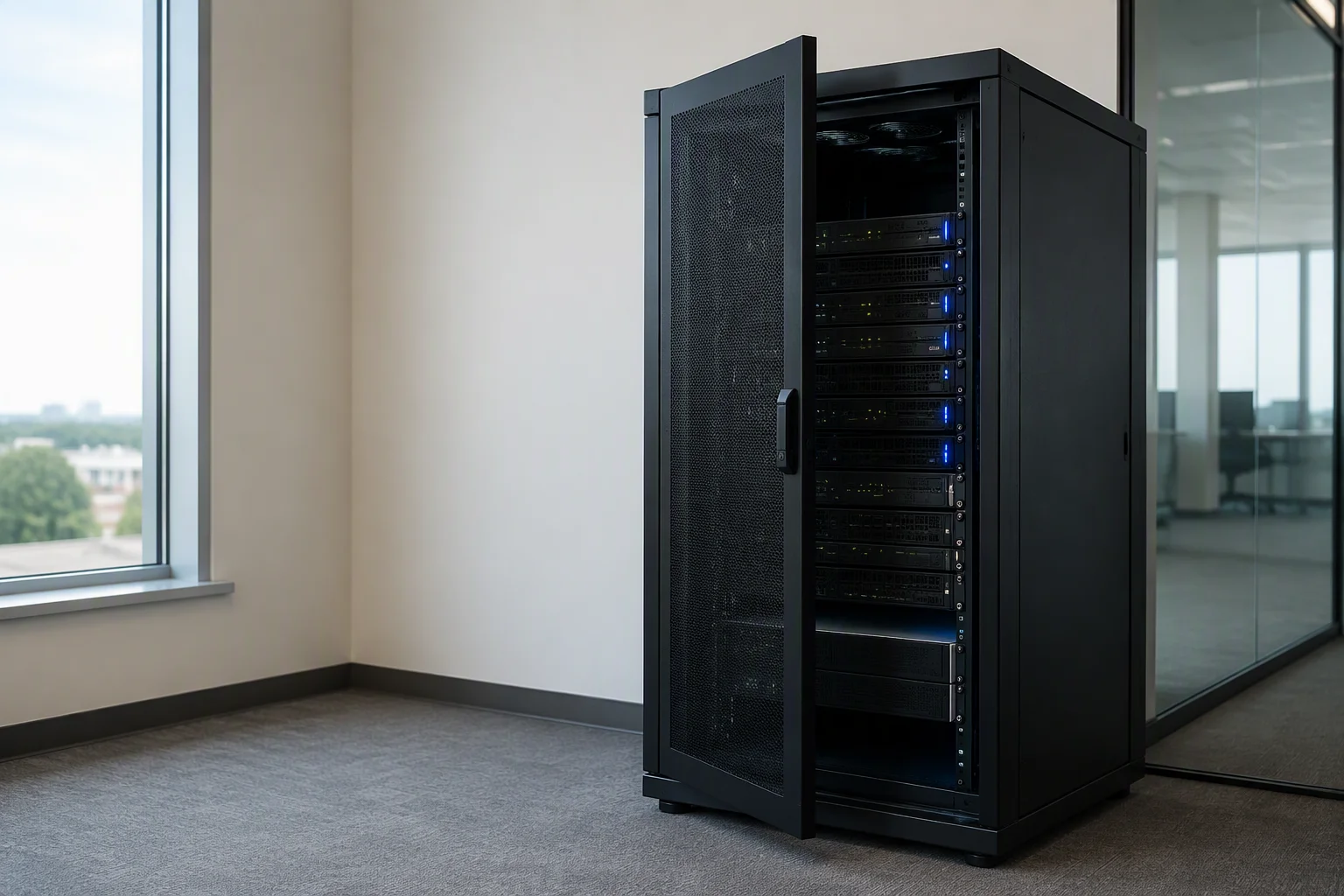

Edge cabinet: -30°C to 100°C ambient sensing

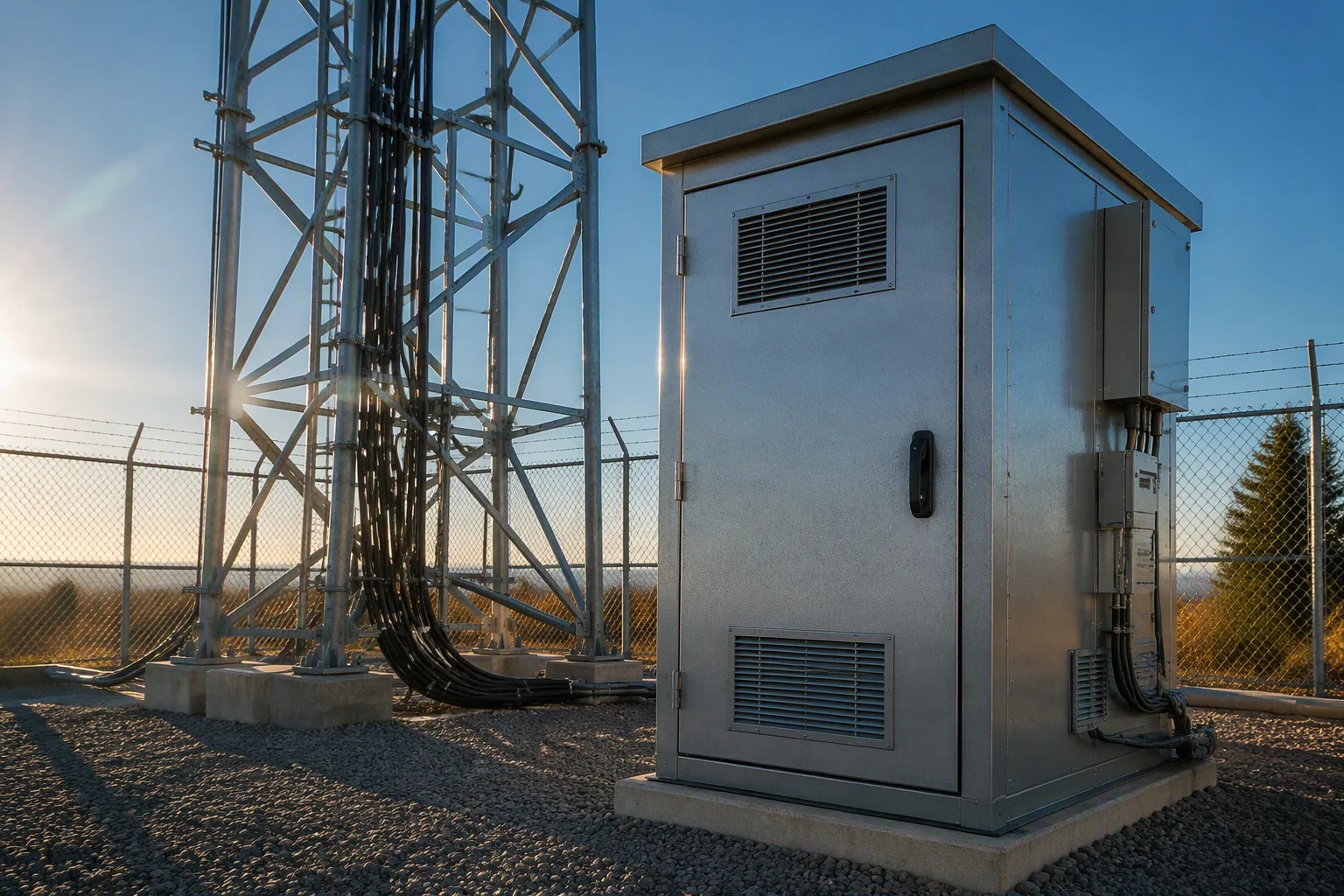

Telecom cabinet: 180 to 265V input, surge protected

Reference build

Electrical and mechanical data, line by line

A horizontal 1U unit with a mixed outlet set, metered per feed. The same enclosure is built as 2U, 3U and 9U, and as a zero-U vertical column.

Reference build: horizontal 1U, metered per feed
Item	Value
Outlet set	C13 × 36 + C19 × 4
Rated input	AC 415V, 20 × 20A
Metering depth	total per feed, ±1%
Current scale	0.1A
Internal conductors	VDE VDE 2.5mm² / 6mm²#
Busbar	copper, bolted connection
Protection	breaker, surge and lightning protection
Network	10/100M Ethernet, RS485
Local display	OLED, IP / current / voltage / power / energy / switch state
Event storage	20,000 records, RTC held
Enclosure	cold-rolled steel, 1U horizontal
Standard basis	IEC / NEMA; CE, RoHS, and UL Recognized Component (UL 62368-1) as applicable

Reading the table

Ratings stay paired

Current, frequency and protection are quoted together, because a rating on its own does not describe a feed. Outlet counts follow the drawing, not a catalogue number.

Tested: 100% electrical testing before packing

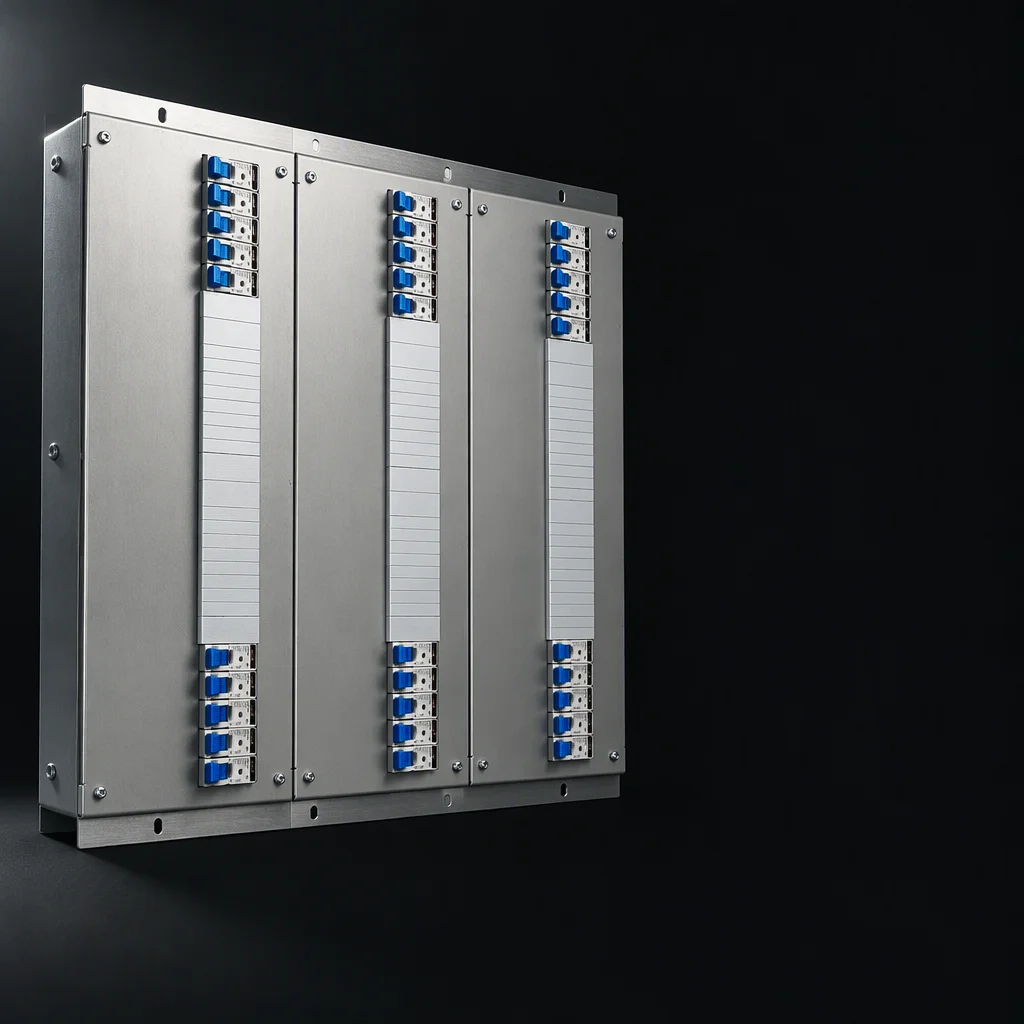

Rack PDU from a raised three-quarter angle with one raking light across the brushed steel chassis, the outlet row reading as a continuous line, held in the left of the frame

Read the feed before you switch it.
Design rule, IDCPDU metering platform

A switched outlet without a reading is a guess. The platform measures first, then lets the relay act, so a group reboot starts from a known current on each line.

Alarm path: SMTP on threshold
Events kept: 20,000 with RTC
Threshold basis: measured, not rated

Platform at a glance

Six numbers behind the platform

Ports, storage and materials, quoted the way they appear on the specification sheet.

Ethernet uplink10/100M×1 port

Serial uplinkRS485×1 port, Modbus

Event records20,000RTC held through power loss

Wide input180 to 265Vsurge and lightning protected

Recycled content>95%declared by the holder

Reply window12 hoursworking days

Rack PDU seen from a low three-quarter angle inside a dark equipment aisle, rack rails receding out of focus behind it, held in the left of the frame

Request a quote

Send four lines. Get a configured quotation.

Outlet combination, current per feed, metering depth, and whether you need remote switching. The reply comes back in English with a specification sheet written per line.

Request a quote Open the selection guides

Reply within 12 hours on working days · documents per line
