Quality and testing

Every unit is powered before it is packed

100% electrical testing is the floor, not the option: continuity, polarity, earth bond, insulation, breaker function and a metering reading compared against a reference meter.

Request a quote Open the certificates

Testing: 100% of units
Metering check: ±1%
UL basis: UL 62368-1 component
Energy grade: 1 grade
Record: per reporting line

Test list

What each unit is checked against

A unit is not signed off on the strength of one reading. The list below runs in order on every build, and the metering lines are compared against a reference instrument.

Coverage: 100% electrical testing · metering class ±1%

Visual and build: outlet order against drawing
Continuity: every line, every outlet
Polarity: line, neutral, earth
Earth bond: chassis to earth path
Insulation: before power-up
Breaker operation: trip and reset
Powered function: outlet by outlet
Metering, current: ±1% + 1 digit vs reference
Metering, voltage: ±1% + 1 digit, 1V scale
Energy register: 1 grade, 0.1 kWh scale
Communications: Ethernet, RS485, SNMP, Modbus
Alarm path: SMTP on threshold

Metering verification

Compared, then recorded

The unit reads current, voltage and power on each reporting line. Those readings are set against a reference instrument, and the result is written into the test record for that line.

Environmental input also checked: -30°C to 100°C at 1°C resolution

Test bench in the assembly area seen from a low three-quarter angle, rack rails and a receding row of closed cabinets out of focus behind the rack PDU under test, held in the right of the frame

On the bench

A powered test, not a visual check

The unit is energised at the bench and each outlet is loaded. Readings appear on the OLED, in the web server and on the SNMP or Modbus registers, so the same figure can be checked in three places.

Supply: 110V to 250V AC
Frequency: 50Hz to 60Hz
Load per feed: 10A to 32A
Readouts: current, voltage, power, energy

Test sequence

Six steps, in this order

Order matters: the insulation check happens before power-up, and the metering comparison happens after the unit has run long enough to settle.

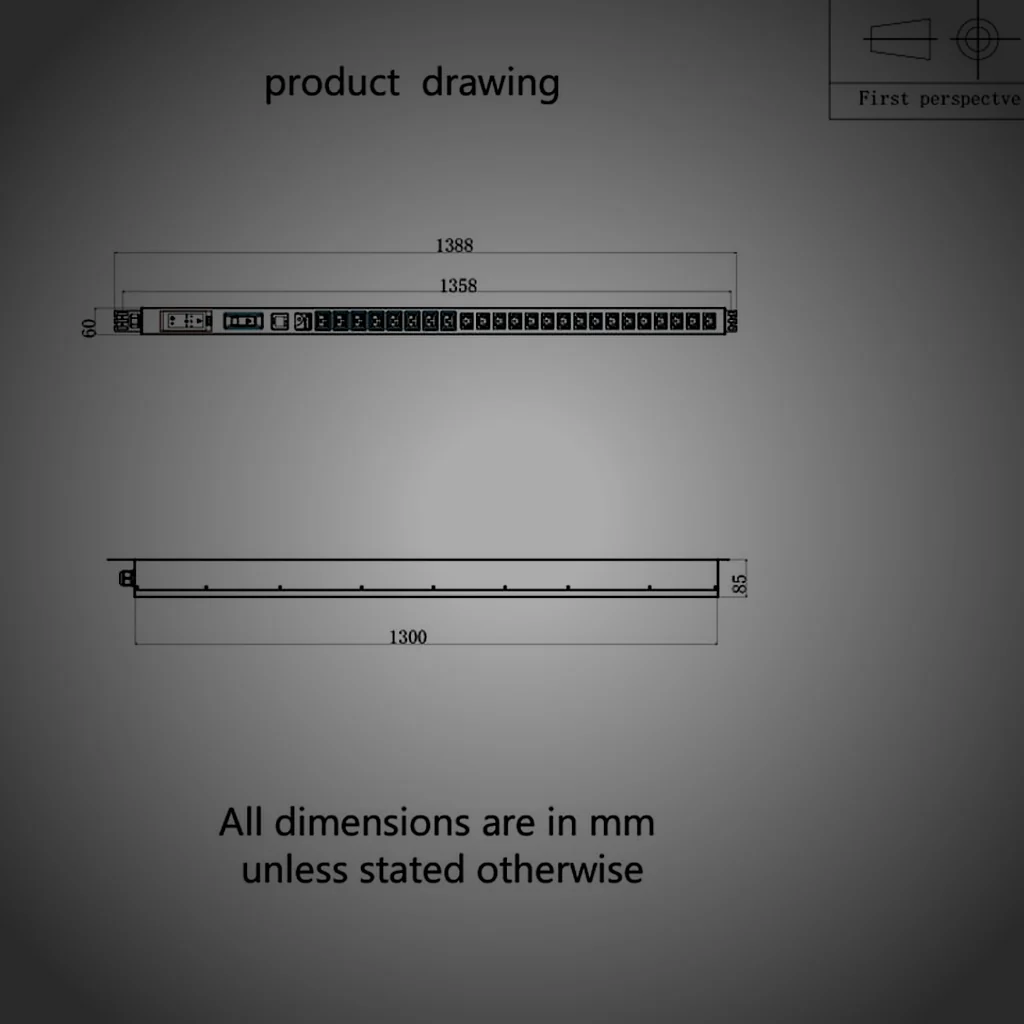

Build against the drawing

Outlet type, outlet count and row order are compared with the confirmed drawing revision. A mismatch stops the unit here.

Reference: drawing revision

Continuity and polarity

Every line and every outlet is buzzed through, and line, neutral and earth are checked for the right order. This catches a swapped tail before power.

Coverage: every outlet

Earth bond and insulation

Chassis to earth path is measured, then insulation is tested with the unit still unpowered. Both results must pass before the breaker is closed.

Sequence: before power-up

Power-up and function

The unit runs at its rated window, 110V to 250V AC at 50Hz to 60Hz. Breakers are tripped and reset, and each outlet is loaded in turn.

Rated window: 110V to 250V AC

Metering comparison

Current, voltage and power readings are set against a reference instrument on each reporting line. Energy is checked on the 0.1 kWh scale.

Tolerance: ±1% + 1 digit

Record and release

The test record is written per line and filed with the unit. Communications, alarm path and the document set are confirmed before packing.

Filed: test record per line

Conformity evidence

Standards behind the test list

The systems certificates cover the site; the product certificates cover the units. The UL evidence is a component certificate for audio, video and information technology equipment, certified to UL 62368-1.
