Monitoring · protocol integration

SNMP and Modbus integration

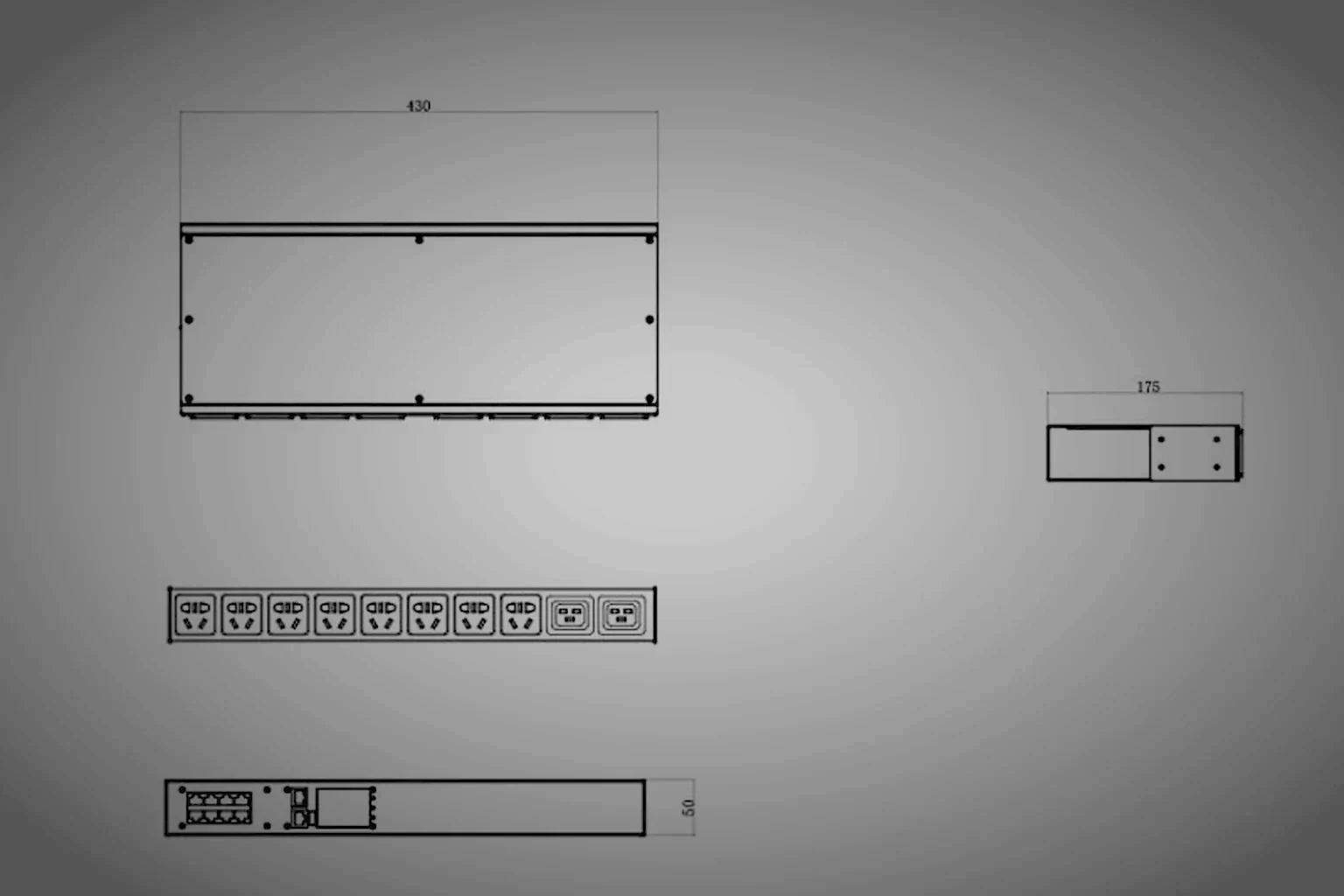

The monitoring board on an IDCPDU rack PDU carries 10/100M Ethernet and RS485, and answers on SNMP and Modbus from the same meter data. Remote switching is addressed per outlet or per group over the same interface.

Request a quote Monitoring overview

Ethernet: 10/100M × 1
Serial: RS485 × 1
Protocols: SNMP · Modbus
Values: per feed · per outlet
Event store: up to 20,000 entries

What a poller reads

Two columns, one row per item: what the platform asks for, and what comes back from the rack. Every value sits on the published scale for the series.

Transport: 10/100M Ethernet × 1
Serial line: RS485 × 1
Protocol A: SNMP
Protocol B: Modbus
Values polled: total per feed · per outlet
Voltage scale: 1V over 90V ~ 350V
Current scale: 0.1A
Metering accuracy: ±1% + 1 digit
Power accuracy: ±1% per feed
Energy total: 1 grade · 0.1 kWh
Trap source: threshold crossing on a line
Mail path: SMTP through the same board
Local fallback: OLED at the rack
Event store: up to 20,000 entries · RTC hold
Remote switching: per outlet or per group
Ambient sensor: -30°C ~ 100°C · humidity 1% ~ 99%

Integration

What the platform side needs

PollerSNMP or Modbus
TrapsThreshold crossings
Log readEthernet or RS485
Host softwareNone

From requirement to mechanism

A rack that is already polled should not need a second stack

A hall that already polls its racks should not need a gateway for one more unit. The board answers on the ports it already carries, publishes the same meter data the local display shows, and raises its own trap when a threshold is crossed, so the platform reads this rack the way it reads the rest of the row.

Register read: meter values
Trap: threshold crossing
Protocols: SNMP · Modbus
Ports: Ethernet × 1 · RS485 × 1

Where a project already runs a register map, the per-line sheet from the quotation is the document that map is written against.

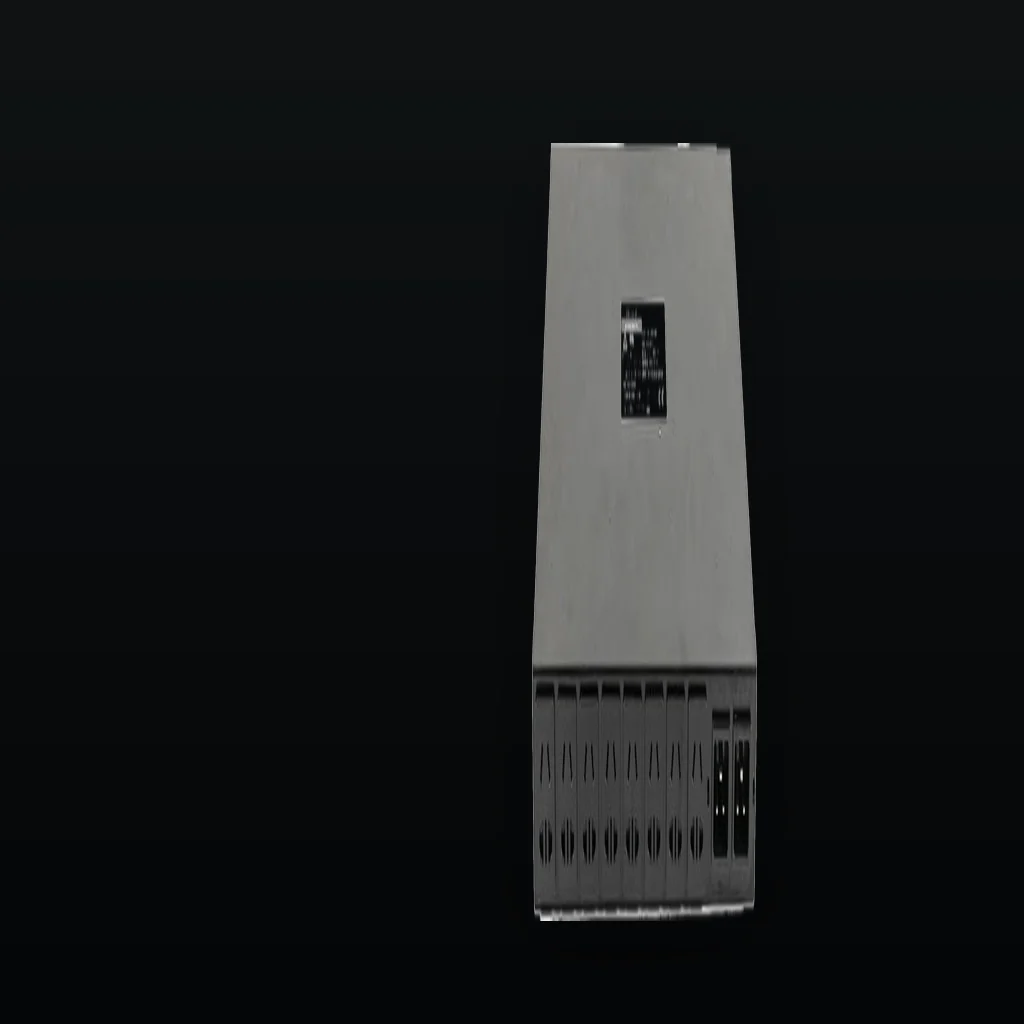

The port face of a rack PDU in a dark aisle, network and serial connectors lit from the upper left with the cable run and the rack rails falling out of focus — Ethernet × 1 · RS485 × 1 · SNMP · Modbus

Meter row

One row per value a poller reads

Each row is a value on the reporting line: the item, the scale it reports at, what it means, and the surfaces that carry it.

Voltage 1V Line and phase readings on three-phase builds, inside a 90V to 350V window SNMP · Modbus · OLED

Total current 0.1A Summed per feed at ±1% plus one digit SNMP · Modbus · OLED

Outlet current 0.1A Per outlet on switched builds, read on the same poll SNMP · Modbus

Active power ±1% Per feed, at the same accuracy as the current reading SNMP · Modbus · OLED

Energy 0.1kWh Billing-grade total kept at 1 grade SNMP · Modbus · OLED

Ambient temperature 1°C Optional sensor over -30°C to 100°C, for the inlet or the rack front SNMP · SMTP

Humidity 1% Optional sensor covering 1% to 99%, reported beside temperature SNMP · SMTP

Main switch state On/off Read as a contact state beside the meter values SNMP · Modbus · OLED

A register read returns the meter value at the scale it was measured on. Every figure on this page is published for the series.

From poll to record

How a reading becomes a record

Three stages, in order. The platform drives the first and the third; the board acts on its own in the middle one.

Register read

The platform reads the meter values on its own cycle over SNMP or Modbus, without a write into the unit.

Output: current, voltage, power and energy per feed · buyer supplies the poll cycle

Trap on crossing

When a value crosses the threshold set for that line, the board sends the trap and writes the entry with the time from the RTC.

Output: trap and dated log entry · thresholds set per line

Log retrieved

The dated entries are read back over the same interface, up to 20,000 of them, with the clock held through a power loss.

Output: dated record for the window · buyer supplies the window

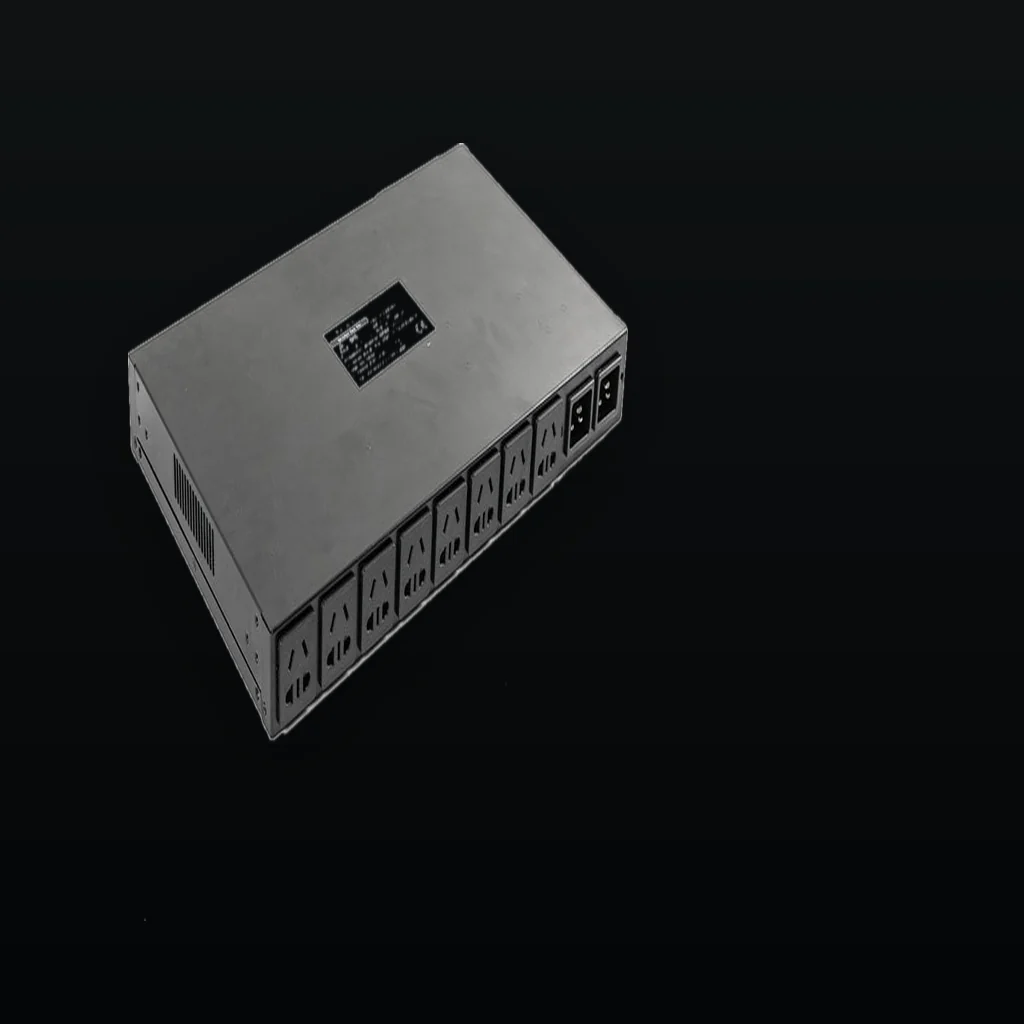

A macro of the connector field on a rack PDU at the left of the frame, one cable seated among the IEC outlet bodies with the brushed steel between the ranks catching a raking light — Port face · Ethernet · RS485 · per-outlet switching

Request a quote

Send the protocol stack and the rack lines

Outlet combination, current per feed, metering depth and remote switching. The reply names the protocol the rack answers on and carries a per-line specification sheet, in English.

Request a quote Open the full request page

Reply within 12 hours on working days. No lead time and no minimum quantity figure is published on this site.
